Functional features:
The EK-12 is a high-power, robust two-way system with a powerful 12 inch (310mm) low-frequency driver and a 1.75-inch (44.4mm) high-frequency compression driver mounted on a continuous directional 80 degree by 50 degree horn. The high-frequency horn can rotate, allowing the multi angle box to be placed both horizontally and vertically. Making the system more concise, it is the ideal choice for situations that require efficient and reliable full range speakers. It is also suitable for fixed installation and quick moving installation.
Application scenarios: studios, multipurpose halls, sports venues, distributed systems, music halls, etc.
Technical parameters:
Unit configuration: LF: 1 × 12 "(310MM); HF: 1 × 1.75" (44.4MM)
Frequency response: 52Hz-20KHz
System: 2way speaker
Impedance: 8ohm
Sensitivity 1w/1m: 98dB
Rated/Peak Power (RMS): 400W/1600W
Output sound pressure level (continuous/peak): 123dB/129dB
Coverage angle: 80 ° x50 ° (H x V)
Protection circuit: High intelligence electronic protection system
Input interface: 1 × Speakon NL4MP
Color: Black
Box material: Birch veneer multi-layer plywood
Surface treatment: water-based polyurethane dot paint

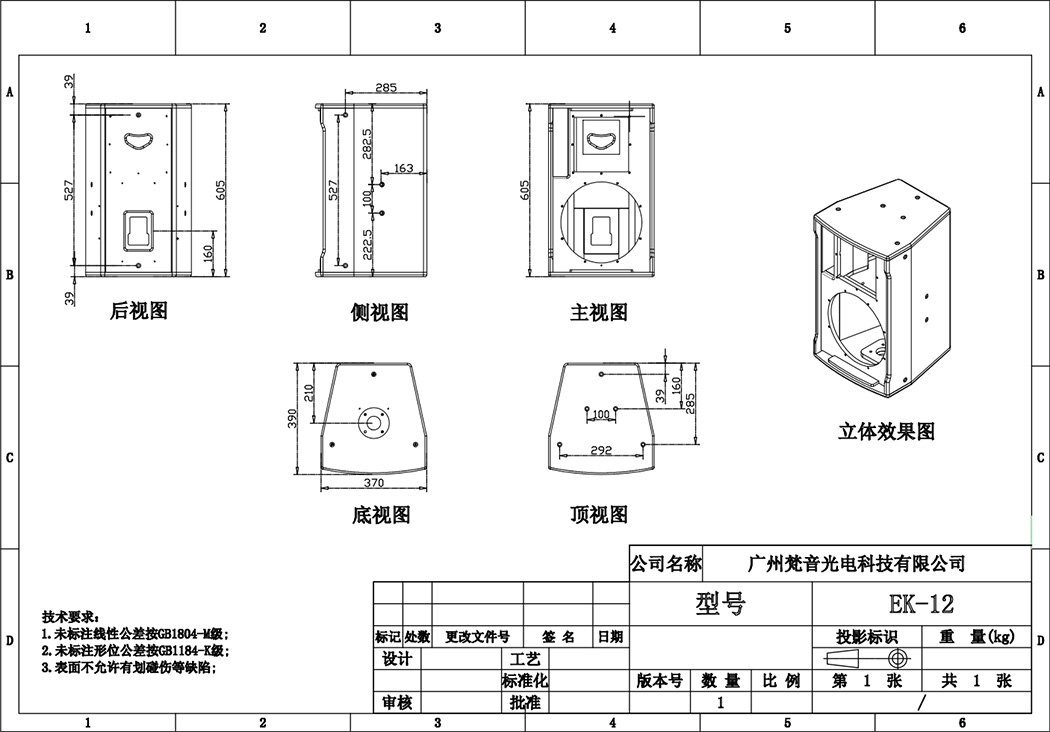

Product dimensions: Width 370 x Height 605 x Depth 390MM
Net weight of product: 20.70KG
