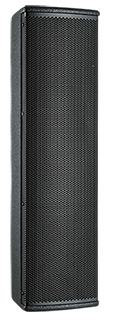

KM405A Product Description:
Provides holes for wall mounting brackets to increase SPL and reduce vertical radiated lobe width
Due to the excellent improvement of the ratio of direct sound to reflected sound, it is suitable for music and vocal processing in fixed installation places with large reverberation, and can be used in outdoor performances, multi-function halls, stadiums, banquet halls, conference rooms and other places, all of which can show excellent language intelligibility, and can process sound field sound effects point-to-point according to the scene
KM402A parameters:
Full Range Driver: 4×4.5(in)(110MM)
Withstand power: 200W
Peak power: 800W
Sensitivity: 92dB1w/1m
Maximum sound pressure: 120dB
Impedance: 8ohm
Frequency response: 80Hz-18KHz
Color: Black
Product size: width 145× height 545× depth 150MM
Product net weight: 7KG

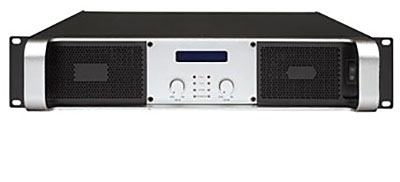

LD-300 Product Description:
LD series power amplifiers adopt stable and reliable circuit design; The op amp of the FET input is selected as the front, the common base circuit is used as the inverted phase, and the common collector circuit is used as the output. Stable performance, convenient input and output interface, complete functions. The perfect protection circuit has: over-current protection, output DC voltage protection and self-locking (which can avoid the harm caused to the speaker by repeatedly opening and closing the relay in the critical state of protection), temperature protection, start-up delay and temperature control stepless speed regulation fan air cooling and heat dissipation.
Technical Indicators
Model: LD-300
8Ω power: 2*300W
4Ω power: 2*450W
8Ω bridge power: 2*900W
Total Harmonic Distortion: Normal Operating Conditions, 1KHz <0.025%
Intermodulation Distortion: Normal operating conditions, 60Hz/7kHz—4/1 <0.075%
Frequency Response: Normal operating conditions, 20Hz-20kHz < +/- 0.25dB
Power bandwidth: -3dB 10Hz-50kHz under normal operating conditions
Phase response: under normal working conditions, 20Hz-20kHz < +/- 8 degrees Signal-to-noise ratio: 1KHz, 0.775V input, A-weighted, >110dB
Damping coefficient: Normal operating conditions, 63Hz >1500
Slew rate: 1us/1ms narrow pulse, 32dB gain >100V/us
Input impedance: Normal operating conditions, 1KHz, balanced input 20 kohm
Minimum load impedance: Stereo >1.6 ohm
Bridging >3.2 ohm
Parallel >0.8 ohm
Separation: 1KHz, 0.775V input >80dB
Common Mode Rejection: 1KHz >80dB under normal operating conditions
Product description of MG-12XU
12-channel mixer
Up to 6 microphones / 12 line inputs (4 mono + 4 stereo)
2 group bus + 1 stereo bus
"D-PRE" mic preamp with inverted transistor circuitry.
Single-knob compressor
Advanced Effects: SPX, with 24 sets of preset effects
24-bit/192kHz 2 in/2 out USB audio function
PAD switch on the mono input channel
+48V phantom powered
XLR balanced output
Worldwide internal global power supply
Metal body

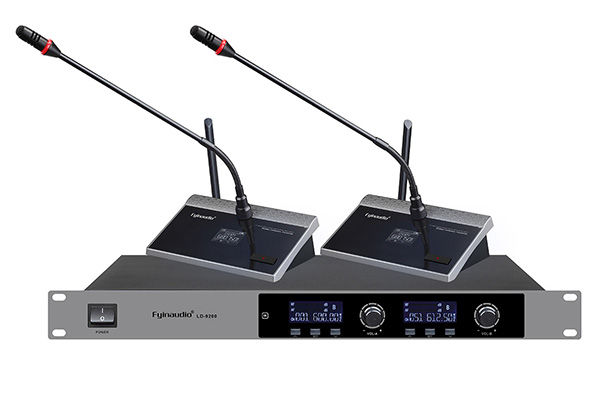

LD-9200 Product Description:
1. Adopt UHF500-900MHz frequency band and PLL phase-locked loop design
2. The host has the design of 400 letter breakers, which is convenient for users to use multiple sets at the same time or stack the machine#� #65533;
3. Each channel is equipped with a unique ID number to enhance the anti-interference function and easily avoid all kinds of interference;
4. Each channel of the host has an LCD screen to display the working channel, working frequency and received signal;
5. Infrared frequency, transmitter can be interchanged, simple operation, advanced function;
6. The main machine is equipped with a lock key function to better manage the system.
7. The all-metal panel with brown PMMA perfectly covers the built-in display screen of the host, and the content can only be displayed when the power is turned on.
8. The host is equipped with 2 rubber receiving antennas to enhance the received signal;
9. It has independent output (XLR) and hybrid (φ6.3mm) output, which is convenient for connecting audio processing and power amplifier equipment;
10. Balanced and unbalanced output ports are selected to adapt to different equipment connection needs;
11. Distance: 80-100 meters in open environment, 50-80 meters in complex environment.
12. It is suitable for all kinds of meetings and speech occasions.

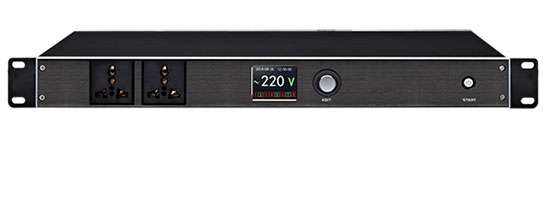

BF-228 Product Description:
Maximum input current: 50A
Maximum output current of a single channel: 16A
Working voltage: 220V/50-60Hz
Power per channel: up to 3000W
Up to 3000WAC input voltage = AC output voltage (please specify before placing an order, optional voltage: 110V input = 110V output, 220V input = 220V output)
Output power socket: universal socket, in line with European and American standards. 8 controlled multi-sockets on the rear panel
Socket material: Each socket is made of phosphor copper, which is installed only after passing the inspection
The interval between each channel: 1 second, with 1 switch indicator for each channel
Relay: Ningbo Songle brand (original genuine)
Circuit board circuit: 60% high-purity tin, high-end shunt technology, strengthened and thickened
Transformer: A&C original genuine
Power cord: 3*6 square cable, cable configuration length of 1.5 meters
Voltage Display Meter: Digital display voltmeter
Chassis height: 1.5U (according to cabinet standards)
Switch: Circular switch
Online support: None
Filter: Capacitive filtering
